Axiom 5FT CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Red)

Axiom 5FT CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Red) - 5 ft Category 8 Network Cable for Network Device - RJ-45 Male Network - RJ-45 Male Network - Patch Cable - Shielding - Gold, Nickel Plated Contact - Red

SKU: 1000234144

Manufacturer part number: C8SBSFTP-R5-AX

Free shipping

Manufacturer: Axiom

Old price: $11.00

Price: $8.85

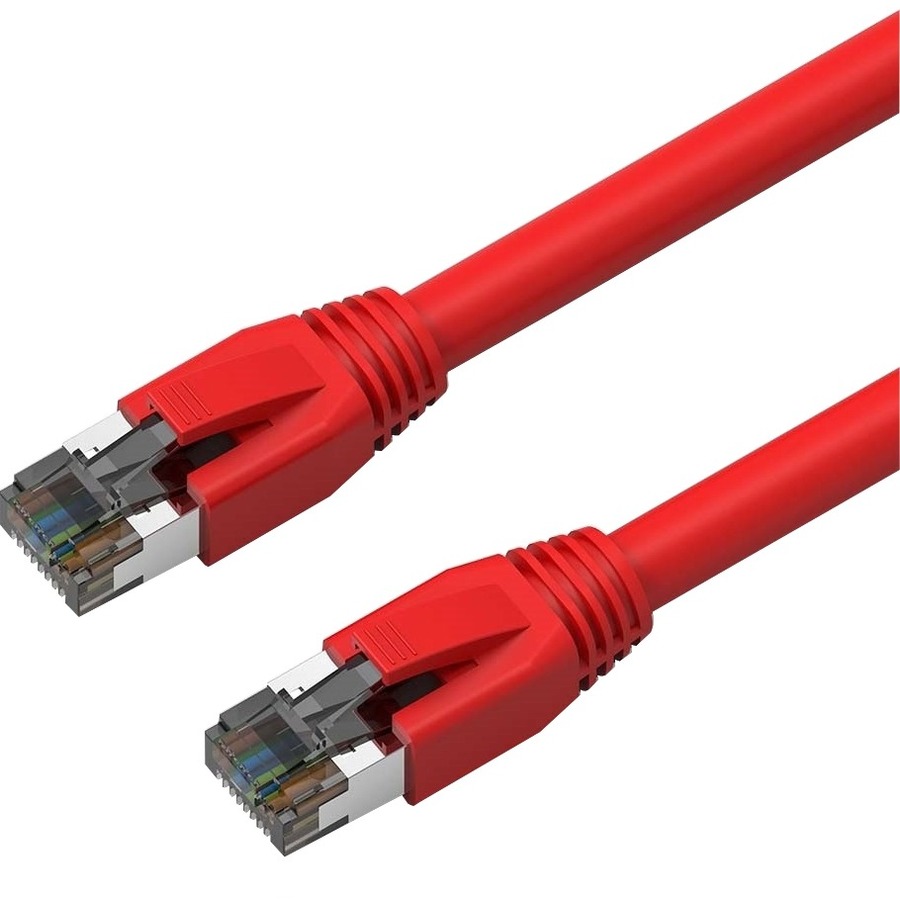

Picture of Axiom 5FT CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Red)

Axiom's CAT8 Ethernet Cables are the first future proof, cost effective, high performance solution capable to reach up to 40Gbps transfer speeds and up to 2GHz of bandwidth. They are made of (4) twisted pure copper wire pairs and each pair is foil-shielded and also the 4 pairs have an overall braided shield. This double shielding structure provides a maximum EMI protection. The snagless boot protects the locking tabs on the RJ45 connectors from being damaged. Our Category 8 shielded cables are offered in a variety of lengths from 6 inch to 50 feet and are available in 9 different colors

Conductor: 4-pair S/FTP stranded copper (6-inch to 7ft use 24AWG wire and 10ft to 50ft use 26AWG wire)

Shielding: Each pair Foil shielded / 4 Pair Braid Shield

Connector: 8P8C RJ45 50 micron gold-plated contacts two-piece with nickel plated shielding

Provides EMI/RFI shielding in Ethernet networks

Wiring: T568B standard

Jacket: PVC

Standard: Category 8 Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant

Snagless Rubber Boots with Strain Relief

Max Bandwidth: Up to 2,000 MHz (2GHz)

Max data rate: Up to 40Gps

Min Avg. jacket Thickness: 0.60 +/- 0.1mm

Backward Compatible with all categories Cat5E, Cat6, Cat6A, Cat7 Networks

Available in all lengths from 6-Inch to 50ft

Colors: K= Black, B= Blue, G=Gray, N=Green, O=Orange, P= Purple, R= Red, W=White, Y= Yellow

Product Information


Transource eSKU	1064413425
Manufacturer	Axiom Memory Solutions
Manufacturer Part Number	C8SBSFTP-R5-AX
Manufacturer Website Address	http://www.axiommemory.com
Brand Name	Axiom
Product Name	5FT CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Red)
Product Type	Network Cable

Product Specifications


Technical Information
Cable Type	Category 8
Cable Characteristic	Patch Cable
Cable Length	5 ft
Connector on First End	RJ-45 Male Network
Connector on Second End	RJ-45 Male Network
Contact Plating	Gold
Contact Plating	Nickel
Features	Snagless Boot
Features	Double Shielded
Features	Strain Relief
Features	EMI/RF Protection
Shielding	Yes
Device Supported	Network Device
Physical Characteristics
Color	Red
Product Material	Copper
Connector Material	Polyvinyl Chloride (PVC)
Shielding Material	Foil
Miscellaneous
Environmentally Friendly	Yes
Environmental Certification	RoHS
