Picture of Axiom 6-inch CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Yellow) Picture of Axiom 6-inch CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Yellow)

Axiom 6-inch CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Yellow)

Axiom 6-inch CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Yellow) - 6" Category 8 Network Cable for Network Device - RJ-45 Male Network - RJ-45 Male Network - Patch Cable - Shielding - Gold, Nickel Plated Contact - Yellow
SKU: 1000336880
Manufacturer part number: C8SBSFTP-Y6IN-AX
Free shipping
Manufacturer: Axiom
Old price: $7.00
$5.90

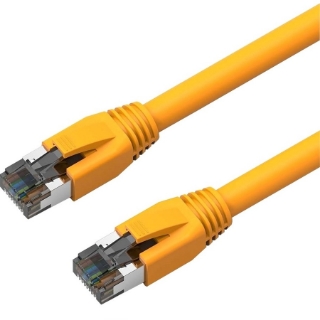

Picture of Axiom 6-inch CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Yellow)

Axiom's CAT8 Ethernet Cables are the first future proof, cost effective, high performance solution capable to reach up to 40Gbps transfer speeds and up to 2GHz of bandwidth. They are made of (4) twisted pure copper wire pairs and each pair is foil-shielded and also the 4 pairs have an overall braided shield. This double shielding structure provides a maximum EMI protection. The snagless boot protects the locking tabs on the RJ45 connectors from being damaged. Our Category 8 shielded cables are offered in a variety of lengths from 6 inch to 50 feet and are available in 9 different colors

  • Conductor: 4-pair S/FTP stranded copper (6-inch to 7ft use 24AWG wire and 10ft to 50ft use 26AWG wire)
  • Shielding: Each pair Foil shielded / 4 Pair Braid Shield
  • Connector: 8P8C RJ45 50 micron gold-plated contacts two-piece with nickel plated shielding
  • Provides EMI/RFI shielding in Ethernet networks
  • Wiring: T568B standard
  • Jacket: PVC
  • Standard: Category 8 Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
  • Snagless Rubber Boots with Strain Relief
  • Max Bandwidth: Up to 2,000 MHz (2GHz)
  • Max data rate: Up to 40Gps
  • Min Avg. jacket Thickness: 0.60 +/- 0.1mm
  • Backward Compatible with all categories Cat5E, Cat6, Cat6A, Cat7 Networks
  • Available in all lengths from 6-Inch to 50ft
  • Colors: K= Black, B= Blue, G=Gray, N=Green, O=Orange, P= Purple, R= Red, W=White, Y= Yellow

    • Product Information
    Transource eSKU 1000336880
    Manufacturer Axiom Memory Solutions
    Manufacturer Part Number C8SBSFTP-Y6IN-AX
    Manufacturer Website Address http://www.axiommemory.com
    Brand Name Axiom
    Product Name 6-inch CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Yellow)
    Product Type Network Cable

    Technical Specifications

    Technical Information
    Cable Type Category 8
    Cable Characteristic Patch Cable
    Cable Length 6"
    Connector Type on First End RJ-45 Network - Male
    Connector on First End Details RJ-45 Network - Male
    Connector Type on Second End RJ-45 Network - Male
    Connector on Second End Details RJ-45 Network - Male
    Contact Plating Gold
    Contact Plating Nickel
    Shielding Yes
    Device Supported Network Device
    Data Transfer Rate 40 Gbit/s
    Boot Type Snagless
    Features Double Shielded
    Features Strain Relief
    Features EMI/RF Protection

    Physical Characteristics
    Product Color Yellow
    Product Material Copper
    Connector Material Polyvinyl Chloride (PVC)
    Shielding Material Foil

    Miscellaneous
    Environmentally Friendly Yes

    Axiom's CAT8 Ethernet Cables are the first future proof, cost effective, high performance solution capable to reach up to 40Gbps transfer speeds and up to 2GHz of bandwidth. They are made of (4) twisted pure copper wire pairs and each pair is foil-shielded and also the 4 pairs have an overall braided shield. This double shielding structure provides a maximum EMI protection. The snagless boot protects the locking tabs on the RJ45 connectors from being damaged. Our Category 8 shielded cables are offered in a variety of lengths from 6 inch to 50 feet and are available in 9 different colors

  • Conductor: 4-pair S/FTP stranded copper (6-inch to 7ft use 24AWG wire and 10ft to 50ft use 26AWG wire)
  • Shielding: Each pair Foil shielded / 4 Pair Braid Shield
  • Connector: 8P8C RJ45 50 micron gold-plated contacts two-piece with nickel plated shielding
  • Provides EMI/RFI shielding in Ethernet networks
  • Wiring: T568B standard
  • Jacket: PVC
  • Standard: Category 8 Compliant with TIA/EIA standard by UL and ETL; RoHS Compliant
  • Snagless Rubber Boots with Strain Relief
  • Max Bandwidth: Up to 2,000 MHz (2GHz)
  • Max data rate: Up to 40Gps
  • Min Avg. jacket Thickness: 0.60 +/- 0.1mm
  • Backward Compatible with all categories Cat5E, Cat6, Cat6A, Cat7 Networks
  • Available in all lengths from 6-Inch to 50ft
  • Colors: K= Black, B= Blue, G=Gray, N=Green, O=Orange, P= Purple, R= Red, W=White, Y= Yellow

    • Product Information
    Transource eSKU 1000336880
    Manufacturer Axiom Memory Solutions
    Manufacturer Part Number C8SBSFTP-Y6IN-AX
    Manufacturer Website Address http://www.axiommemory.com
    Brand Name Axiom
    Product Name 6-inch CAT8 2000mhz S/FTP Shielded Patch Cable Snagless Boot (Yellow)
    Product Type Network Cable

    Technical Specifications

    Technical Information
    Cable Type Category 8
    Cable Characteristic Patch Cable
    Cable Length 6"
    Connector Type on First End RJ-45 Network - Male
    Connector on First End Details RJ-45 Network - Male
    Connector Type on Second End RJ-45 Network - Male
    Connector on Second End Details RJ-45 Network - Male
    Contact Plating Gold
    Contact Plating Nickel
    Shielding Yes
    Device Supported Network Device
    Data Transfer Rate 40 Gbit/s
    Boot Type Snagless
    Features Double Shielded
    Features Strain Relief
    Features EMI/RF Protection

    Physical Characteristics
    Product Color Yellow
    Product Material Copper
    Connector Material Polyvinyl Chloride (PVC)
    Shielding Material Foil

    Miscellaneous
    Environmentally Friendly Yes
