The DisplayPort AOC is the perfect solution for extending DisplayPort signals in classrooms, conference rooms, healthcare facilities, digital signage and other commercial environments.
Utilizing AOC technology that performs similar to traditional copper cabling, the optical fiber construction between the connectors provides optimum performance and easy installation. The AOC technology delivers several advantages which make it a smart choice in select installations. The cable diameter is smaller than copper and more flexible, making it easier to install in tight spaces. Constructed from fiber strands, this cable reduces the risk of EMI/RFI so performance is stable when used in typically high interference environments such as data centers, surgical theaters, or manufacturing facilities where high resolution and consistent display are critical.
The AOC draws power from the DisplayPort source device, so no external power source is required. In addition to low power consumption, these cables are also plug and play and hot swappable. Additionally, the DisplayPort Active Optical Cable supports the latest 4K (4096 x 2160 at 60Hz) content delivery over longer distances.
| |
| Transource eSKU | 1045320323 |
| Manufacturer | C2G |
| Manufacturer Part Number | 29536 |
| Manufacturer Website Address | http://www.cablestogo.com |
| Brand Name | C2G |

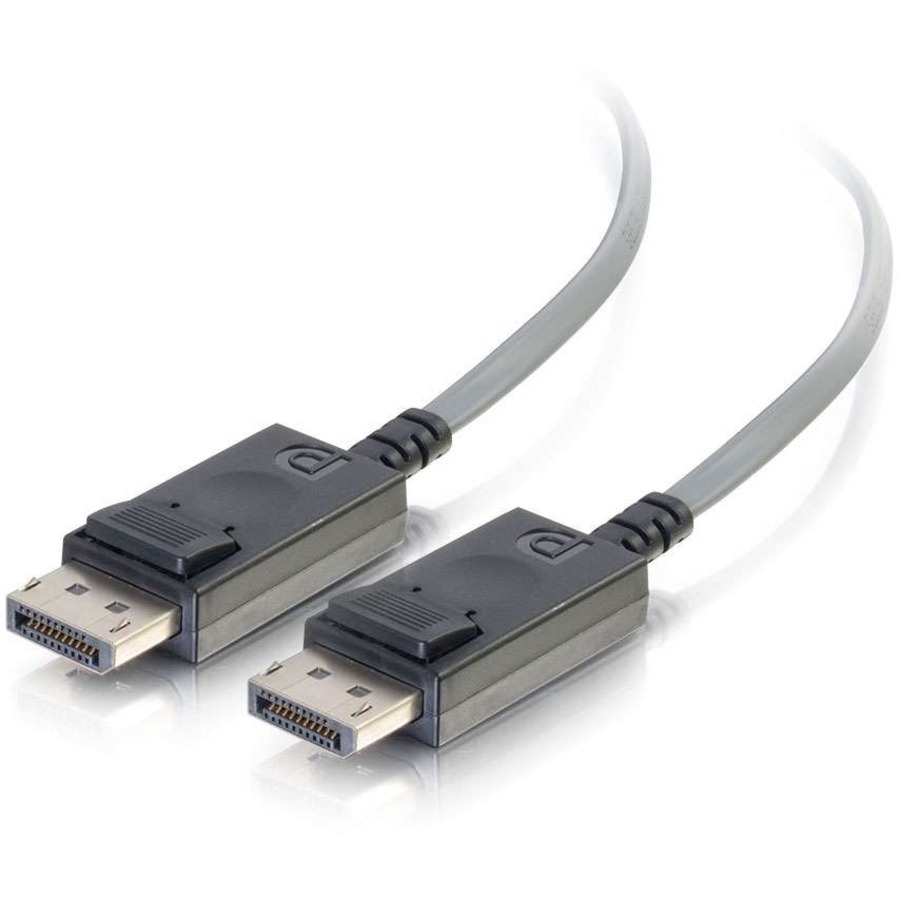

| Product Name | 50ft DisplayPort Active Optical Cable (AOC) 4K 60Hz - Plenum CMP (TAA) |
| Product Type | A/V Cable |
| |
| Technical Information |
| Cable Type | Fiber Optic |
| Cable Length | 50 ft |
| Connector on First End | 1 x 20-pin DisplayPort Male DisplayPort 1.2 Digital Audio/Video |
| Connector on Second End | 1 x 20-pin DisplayPort Male DisplayPort 1.2 Digital Audio/Video |
| Features | Active |
| Features | EMI/RF Protection |
| Features | Flexible |
| Features | x.v.Color |
| Features | Tight Buffer |
| Features | Extended Display Identification Data (EDID) |
| Features | Consumer Electronics Control (CEC) |
| Device Supported | Audio/Video Device |
| American Wire Gauge | 30 AWG |
| Data Transfer Rate | 21.6 Gbit/s |
| Supported Resolution | 4096 x 2160 |
| Physical Characteristics |
| Color | Gray |
| Weight (Approximate) | 0.67 lb |
| Miscellaneous |
| Environmentally Friendly | Yes |
| Environmental Certification | EU RoHS |
| Country of Origin | South Korea |
| TAA Compliant | Yes |
| Warranty |
| Limited Warranty | 3 Year |
