| General Information |
| Manufacturer | Lenovo Group Limited |
| Manufacturer Part Number | 61F6MAT2US |
| Manufacturer Website Address | http://www.lenovo.com/us/en/ |
| Brand Name | Lenovo |
| Product Line | ThinkVision |
| Product Model | T23i-20 |

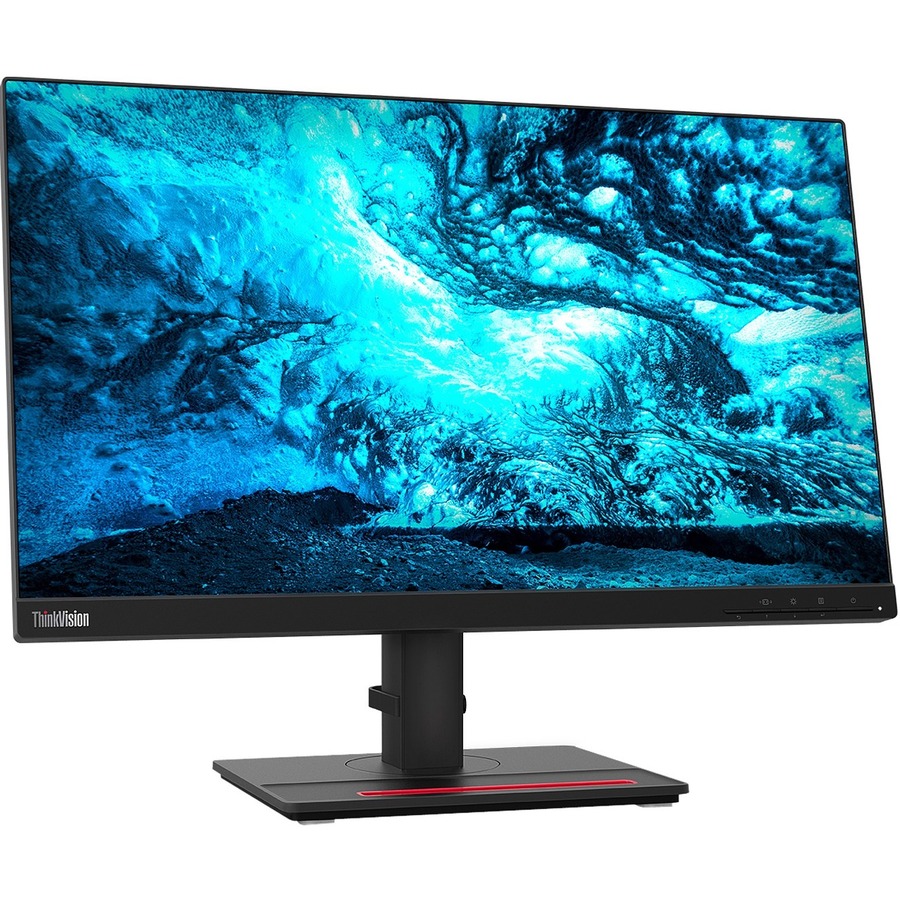

| Product Name | ThinkVision T23i-20 23-inch FHD LED Backlit LCD Monitor |
| Marketing Information | Enhance your work and experience brilliant visuals on the ThinkVision T23i-20. View crystal-clear details from all angles on this 23-inch monitor that has an In-Plane Switching panel and anti-glare display. Its ultra-thin, 3-side NearEdgeless bezels offer wide screen real estate to let you create and collaborate efficiently. Multiple ports on the ThinkVision T23i-20 allow you to connect to peripherals effortlessly. While enabling efficient working, the monitor, with ergonomic stand and TÜV Rheinland Eye Comfort certification, ensures that you work comfortably. |
| Product Type | LCD Monitor |
| Technical Information |
| Number of Screens | 1 |
| Screen Size Class | 23" |
| Viewable Screen Size | 23" |
| Screen Mode | Full HD |
| Panel Technology | In-plane Switching (IPS) Technology |
| Response Time | 4 ms Extreme Mode |
| Aspect Ratio | 16:9 |
| Pixel Pitch | 10.4 mil |
| Horizontal Viewing Angle | 178° |
| Vertical Viewing Angle | 178° |
| Mount Type | Desk Mountable |
| Backlight Technology | WLED |
| Features | Anti-glare |
| Features | Eye-Care |
| Features | On-screen Display (OSD) |
| Features | Security Lock |
| Horizontal Frequency | 30 kHz to 75 kHz |
| Vertical Frequency | 47 Hz to 63 Hz |
| Vertical Frequency | 50 Hz to 75 Hz |
| Stand Adjustments | Tilt |
| Stand Adjustments | Height |
| Stand Adjustments | Pivot |
| Stand Adjustments | Swivel |
| Adjustable Stand Height | Yes |
| Video |
| Maximum Resolution | 1920 x 1080 |
| Standard Refresh Rate | 75 Hz |
| Color Supported | 16.7 Million Colors |
| Native Contrast Ratio | 1,000:1 |
| Dynamic Contrast Ratio | 3,000,000:1 |
| Brightness | 250 Nit |
| Color Gamut | 75% NTSC |
| Audio |
| Speakers | No |
| Network & Communication |
| Wireless LAN | No |
| Bluetooth | No |
| Interfaces/Ports |
| Network (RJ-45) | No |
| HDMI | Yes |
| USB | Yes |
| VGA | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 4 |
| Number of USB 3.1 Gen 1 Ports | 4 |
| Number of DisplayPorts | 1 |
| Built-in Devices |
| Built-in Devices | USB Hub |
| Power Description |
| Operating Power Consumption | 52 W |
| Standby Power Consumption | 500 mW |
| Off-Mode Power Consumption | 300 mW |
| Physical Characteristics |
| VESA Mount Compatible | Yes |
| Color | Raven Black |
| Height | 0.5" |
| Width | 0.8" |
| Depth | 0.1" |
| Height with Stand | 0.86" |
| Width with Stand | 0.81" |
| Depth with Stand | 0.31" |
| Weight (Approximate) | 7.32 lb |
| Weight with Stand (Approximate) | 12.32 lb |
| Miscellaneous |
| Energy Star | Yes |
| Environmentally Friendly | Yes |
| Environmental Certification | TCO Certified Edge Displays 2.0 |
| Environmental Certification | TCO 8.0 |
| Environmental Certification | EPEAT Gold |
| Environmental Certification | RoHS |
| Environmental Certification | ENERGY STAR 8.0 |
| TCO Certified | Yes |
| Warranty |
| Limited Warranty | 3 Year |
