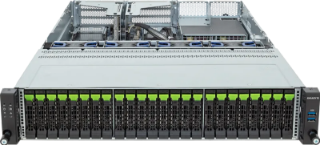

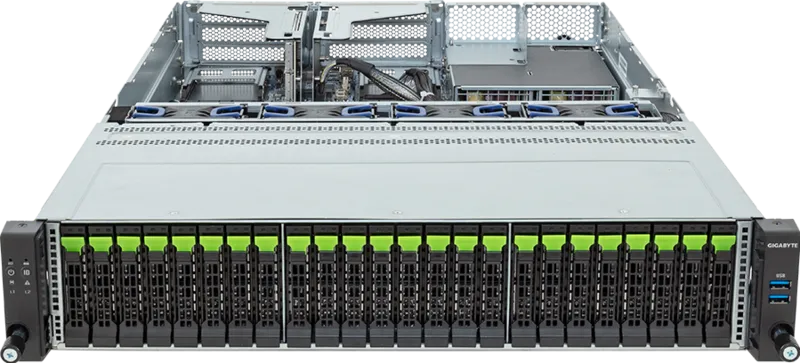

TBird-A5-Dual-2U High-Performance 2U Dual-Socket Server
The TBird-A5-Dual-2U is an enterprise-grade 2U rackmount server engineered for demanding data center applications, virtualized environments, cloud infrastructure, and compute-intensive enterprise workloads. Powered by dual AMD EPYC™ 9005 series processors, this platform delivers exceptional compute density, ultra-fast memory throughput, and flexible storage capabilities in a 2U footprint.
Featuring advanced 12-channel DDR5 memory architecture across 24 DIMM slots, high-speed PCIe Gen5 expansion slots, versatile storage configurations, and redundant high-efficiency power supplies, the TBird-A5-Dual-2U provides a resilient and scalable foundation for modern enterprise IT infrastructure and high-performance computing clusters.
Dual-Socket Processor Performance: Powered by dual AMD EPYC™ 9005 Series Processors (LGA 6096 / Socket SP5) with up to 160 PCIe Gen5 lanes.
High-Capacity DDR5 Memory: Features 24 x DIMM slots supporting 12-channel DDR5 RDIMM memory architecture for superior bandwidth.
Advanced PCIe Gen5 Expansion: Includes high-speed PCIe Gen5 expansion slots designed for add-in cards, high-speed networking, and GPU interconnects.
Versatile Storage Configuration: Supports up to 24 x hot-swappable 2.5-inch Gen5 NVMe/SATA/SAS drive bays plus M.2 PCIe slots for fast system boot and data access.
System Reliability: Dual ROM architecture supports advanced firmware security and seamless management flexibility.
Redundant Power Design: Equipped with high-efficiency 80 PLUS Titanium redundant power supplies for maximum system availability.
Integrated BMC Management: ASPEED AST2600 Baseboard Management Controller with dedicated management port for remote monitoring.
Form Factor
• 2U Rackmount Server Chassis (438W x 87.5H x 815D mm)
Processor
• Dual-socket SP5 platform
• Supports dual AMD EPYC™ 9005 Series Processors (TDP up to 400W per socket)
Memory
• 12-channel DDR5 RDIMM memory architecture per processor
• 24 x DIMM slots (Supports up to 6000 MT/s RDIMM)
ExpansionSlots
• Multiple FHFL PCIe Gen5 expansion slots
• 1 x OCP 3.0 Gen5 x16 slot with NCSI support
Storage
• Up to 24 x hot-swappable 2.5-inch Gen5 NVMe / SATA / SAS drive bays
• 2 x M.2 slots (PCIe Gen4 x4)
Networking & I/O
• 1 x 10/100/1000 Mbps Management LAN port
• Front and rear USB 3.2 Gen1 ports
• Mini-DP video output (integrated via ASPEED AST2600)
System Architecture
• Dual ROM architecture for firmware redundancy
• ASPEED AST2600 Baseboard Management Controller with GIGABYTE Management Console
Power Supply
• Dual 80 PLUS Titanium redundant power supplies (1+1 redundant)
The TBird-A5-Dual-2U is designed for enterprise data centers and enterprise IT environments requiring dense dual-socket performance for:
• Enterprise cloud infrastructure and virtualized environments
• High-density web server clusters and database applications
• Software-defined storage nodes and big data analytics
• High-performance enterprise compute workloads
Combining dual AMD EPYC™ 9005 processing power, 24 DDR5 DIMM slots, PCIe Gen5 expansion, hot-swappable drive bays, and redundant Titanium power supplies, the TBird-A5-Dual-2U offers a scalable, efficient, and robust compute solution tailored to modern enterprise requirements.
