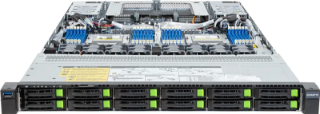

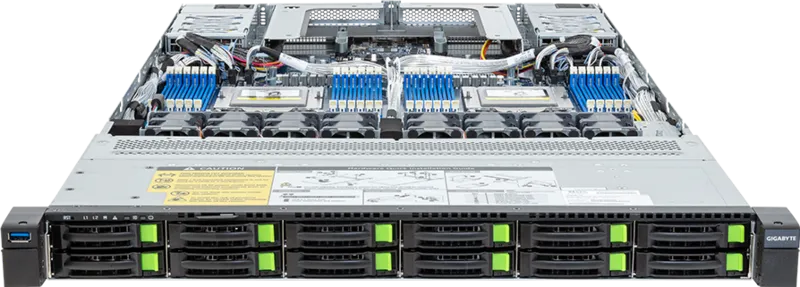

TBird-E5-D1U-12B High-Performance Server
The TBird-E5-D1U-12B is an enterprise-grade high-performance 1U rackmount server engineered for demanding data center workloads, cloud virtualization, artificial intelligence (AI), and high-performance computing (HPC) applications. Designed with a dense 12-bay storage configuration, this platform delivers exceptional compute density, high memory bandwidth, and flexible PCIe Gen5 expansion capabilities.
Powered by dual AMD EPYC™ 9005 and 9004 Series processors, the TBird-E5-D1U-12B provides an ultra-dense, robust foundation for modern enterprise environments. Featuring 24 x DDR5 RDIMM slots across a 12-channel memory architecture, 12 front-accessible Gen5 NVMe drive bays, dual OCP NIC 3.0 slots, and redundant high-efficiency Titanium power supplies, it is optimized for high-throughput computing and mission-critical reliability.
Dual-Processor Architecture: Powered by dual AMD EPYC™ 9005 / 9004 Series processors (Socket SP5) supporting up to 300W cTDP (up to 400W under limited thermal conditions).
High-Capacity DDR5 Memory: Features 24 x DDR5 RDIMM slots supporting 12-channel memory architecture for maximum memory bandwidth and capacity.
12-Bay Gen5 Storage Density: Equipped with 12 x 2.5" hot-swap Gen5 NVMe / SATA / SAS-4 drive bays for high-density, high-speed storage configurations.
Advanced PCIe Gen5 Expansion: Includes 2 x FHHL PCIe Gen5 x16 slots and 2 x OCP NIC 3.0 PCIe Gen5 x16 slots for high-speed networking, accelerators, and add-in cards.
Onboard M.2 Storage: Three M.2 slots (PCIe Gen3) for rapid OS boot and ultra-fast local storage.
Enterprise System Management: Integrated ASPEED AST2600 BMC with dedicated 1GbE management port for remote monitoring and IPMI 2.0 control.
Redundant Power Infrastructure: Powered by dual 1600W 80 PLUS Titanium redundant power supplies for maximum system uptime and efficiency.
Form Factor
• 1U Rackmount
Processor
• Dual Socket SP5 (LGA 6096)
• AMD EPYC™ 9005 / 9004 Series Processors
• cTDP up to 300W (up to 400W under limited thermal conditions)
Memory
• 24 x DDR5 RDIMM slots
• 12-channel architecture
Storage
• 12 x 2.5" Hot-Swap Gen5 NVMe / SATA / SAS-4 drive bays
• 3 x M.2 slots (PCIe Gen3 x4 / x2) for OS and local storage
ExpansionSlots
• 2 x FHHL PCIe Gen5 x16 slots
• 2 x OCP NIC 3.0 PCIe Gen5 x16 slots
Networking
• 2 x 1GbE LAN ports (Intel® I350-AM2)
• 1 x Dedicated 1GbE management LAN
System Management
• ASPEED AST2600 BMC with dedicated management port
Power Supply
• Dual 1600W 80 PLUS Titanium Redundant Power Supplies
The TBird-E5-D1U-12B is engineered for enterprise data centers, cloud providers, and high-performance computing environments requiring dense 1U compute and storage for:
• Cloud virtualization and private cloud infrastructure
• High-density NVMe storage and software-defined storage
• Artificial Intelligence and machine learning inference workloads
• High-Performance Computing (HPC) and scientific simulations
• High-throughput data analytics and database acceleration
• Mission-critical enterprise applications requiring maximum uptime
Combining dual AMD EPYC™ processing, high-density 12-channel DDR5 memory, 12 x Gen5 NVMe storage bays, dual OCP NIC 3.0 expansion, and redundant 1600W Titanium power supplies, the TBird-E5-D1U-12B delivers a robust, scalable 1U compute foundation tailored for modern data center, AI, and enterprise computing environments.
