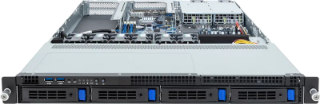

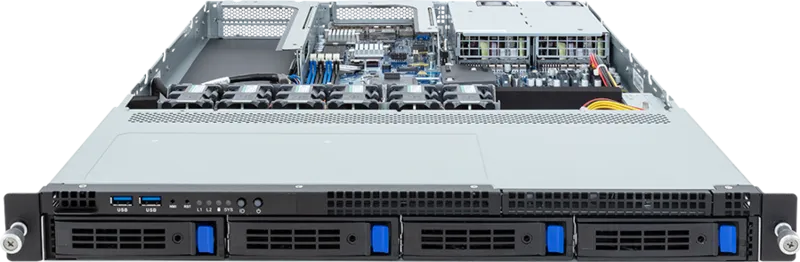

Tbird-X13-1U High-Performance Server
The Tbird-X13-1U is a compact, enterprise-grade 1U rackmount server engineered for edge computing, AI inference, cloud virtualization, and general-purpose enterprise workloads. Built on a single-socket Intel® platform with PCIe Gen5 GPU support, this system delivers efficient performance, flexible expansion, and reliable operation in a dense 1U form factor.
Featuring dual-channel DDR5 memory, four hot-swap storage bays, PCIe Gen5 expansion for a dual-slot GPU, and redundant Platinum power supplies, the Tbird-X13-1U provides a cost-effective and scalable foundation for modern edge, cloud, and AI inference environments.
Single-Socket Intel Architecture: Powered by a single Intel® Xeon® 6300-Series / E-2400 or Pentium® Gold processor (Socket LGA 1700, TDP up to 95W).
DDR5 Memory Support: Features 4 x DDR5 ECC UDIMM slots in a dual-channel architecture for efficient memory bandwidth.
PCIe Gen5 GPU Expansion: Supports 1 x dual-slot PCIe Gen5 GPU via a full-height full-length Gen5 x16 slot (or dual Gen5 x8 configuration).
Flexible Storage: Equipped with 4 x 3.5"/2.5" SATA hot-swap drive bays plus 1 x M.2 PCIe Gen4 x4 slot for OS and high-speed storage.
Enterprise Networking: Includes dual 1GbE LAN ports (Intel® I210-AT) and a dedicated management LAN for secure remote administration.
Redundant Power: Powered by 1+1 800W 80 PLUS Platinum redundant power supplies for high availability and efficiency.
Integrated BMC Management: Integrated ASPEED AST2600 BMC with dedicated management port for remote monitoring and control.
Form Factor
• 1U Rackmount
Processor
• Single Socket LGA 1700
• Intel® Xeon® 6300-Series / E-2400 Processors
• Intel® Pentium® Gold G7400 / G7400T support
• TDP up to 95W
Memory
• 4 x DDR5 ECC UDIMM slots
• Dual-channel architecture
GPU Expansion
• Supports 1 x dual-slot PCIe Gen5 GPU
• 1 x FHFL PCIe Gen5 x16 or 2 x FHFL PCIe Gen5 x8 slots
• 1 x FHHL PCIe Gen4 x4 slot
Storage
• 4 x 3.5"/2.5" SATA Hot-Swap drive bays
• 1 x M.2 slot (PCIe Gen4 x4)
Networking
• 2 x 1GbE LAN ports (Intel® I210-AT)
• 1 x Dedicated 1GbE Management LAN
System Management
• ASPEED AST2600 BMC with dedicated management port
Power Supply
• 1+1 800W 80 PLUS Platinum Redundant Power Supplies
The Tbird-X13-1U is engineered for edge deployments, small-to-medium enterprise environments, and AI inference workloads requiring compact 1U density for:
• AI inference and edge AI acceleration
• Cloud virtualization and private cloud infrastructure
• Edge computing and remote office deployments
• General-purpose enterprise applications and file services
• Cost-effective high-availability 1U compute
Combining single-socket Intel® processing, PCIe Gen5 GPU expansion, dual-channel DDR5 memory, flexible SATA storage, dual 1GbE networking, and redundant 800W Platinum power supplies, the Tbird-X13-1U delivers a reliable, efficient 1U foundation tailored for edge, AI inference, and enterprise computing environments.
